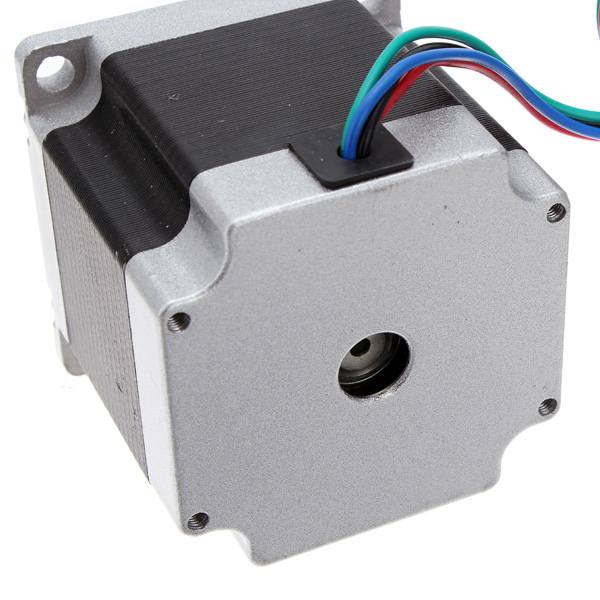

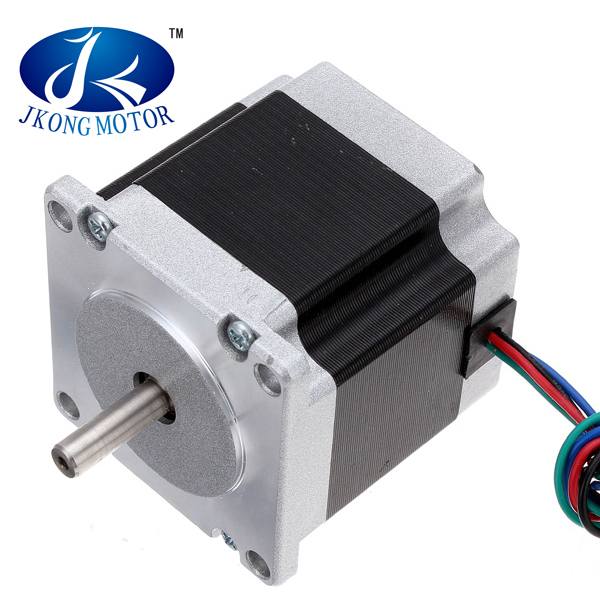

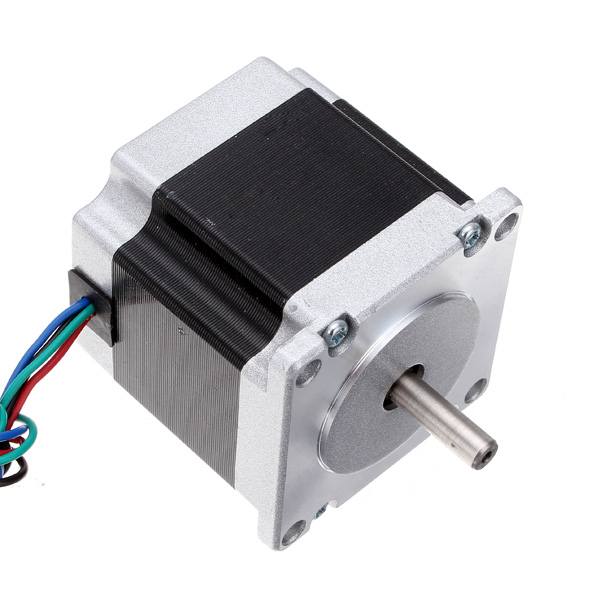

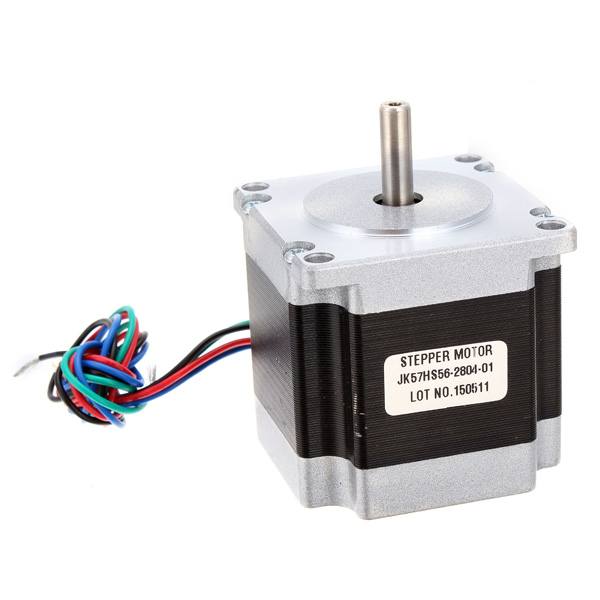

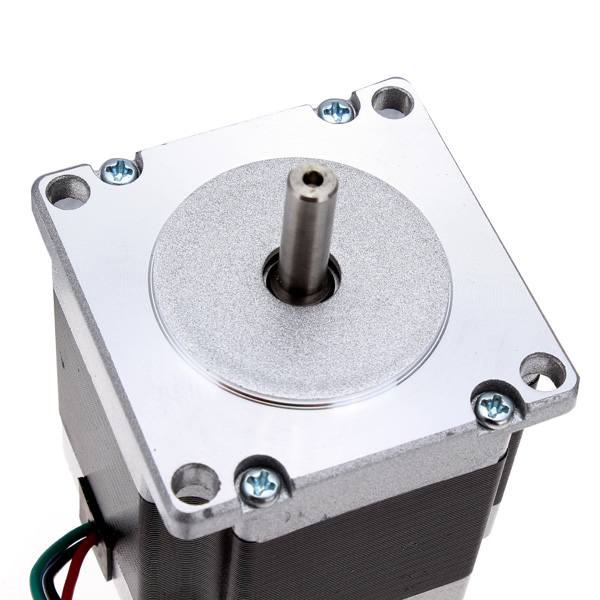

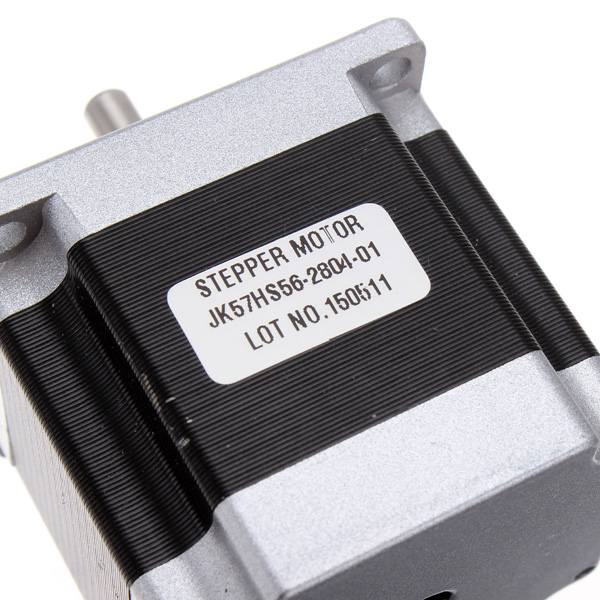

JKM NEMA23 1.857 Hybrid Stepper Motor Two Phase 56mm 1.26N.m 2.8A

25.48

Description:
JKM NEMA23 1.8°57 Hybrid Stepper Motor Two Phase 56mm Motor 1.26N.m 2.8A

Specification:
Brand: JKM
Model: JK57HS56-2804
Motor length: 56mm
Diameter of axle: 6.35mm
The front shaft length: 20.6mm
Size: 57mm x 57mm x 56mm
Outgoing line: 300mm (Plug is not included)
Certification:  CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.

Genaral Specification:
ItemSpecifications
Step Angle1.8°
Temperature Rise80℃max
Ambient Temperature-20℃~+50℃
Insulation Resistance100 MΩMin., 500VDC
Dielectric Strength500VAC for 1 minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force75N (20mm from the flange)
Max. axial force15N

Electrical Specification:
Model No.Step AngleMotor Length
Current
/Phase

Resistance
/Phase
Inductance
/Phase
Holding Torque
# of Leads

Detent TorqueRotor InertiaMass
( °)(L)mm AΩmHN.mNo.g.cmg.cmKg
JK57HS56-28041.8562.80.92.51.2643502800.68


Features:
High holding torque at high speed.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.

Wiring Diagram:

Package Included:
1x Hybrid Stepping Motor
